Bipv Curved Solar Roof Tiles That Generates Electricity

Not only do our solar roof tiles enhance the appearance of your home, but they also provide a practical and cost-effective way to generate electricity. By harnessing the power of the sun, our solar roof tiles can significantly reduce your electricity bills while also reducing your carbon footprint.

  • gainsolar
  • hangzhou
  • Information


It is a product that integrates solar panels and traditional roof tiles in one, which can replace traditional tiles and perfectly integrate solar power generation and building aesthetics. Compared with ordinary tiles, it possesses the subversive advantage of power generation, and compared with ordinary photovoltaic panels, it has the function of roof tiles and retains the aesthetics of a roof that will not be damaged.


The product is characterised by high efficiency in power generation, aesthetics and durability, which not only provides clean energy to the building, but also enhances the aesthetics of the building and reduces the energy consumption of the building. It is widely used in residential, commercial and public buildings, and is an innovative green building material that is highly recognised by the market and users.


Flat solar tiles are already common and simple to produce, but the quest for aesthetics never ends, so curved solar roof tiles have been introduced with great anticipation, breaking the stereotype of ugly roof panels.


I will introduce two curved solar tiles

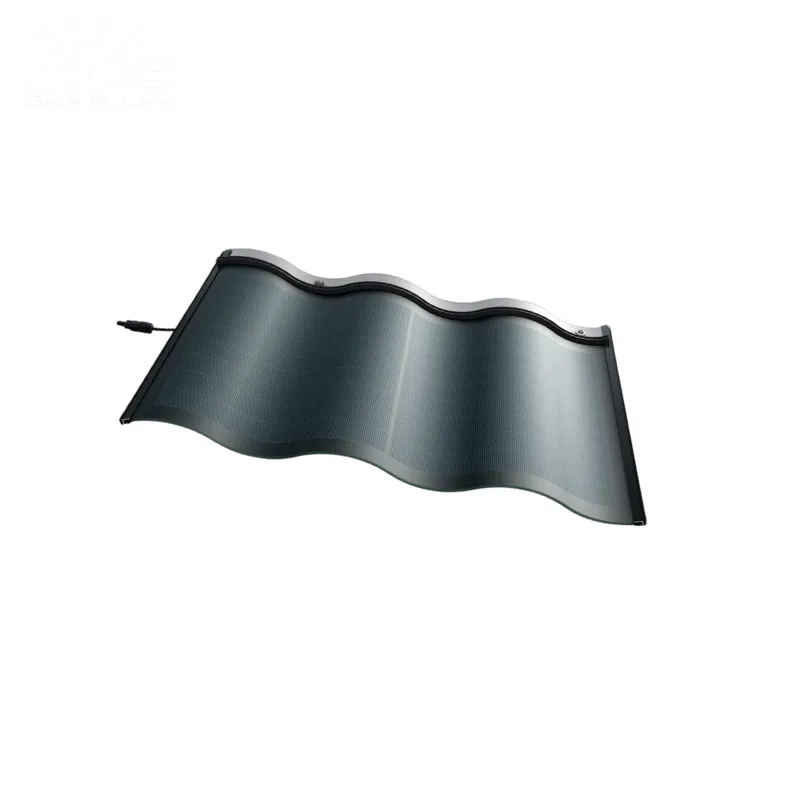

Type 1—— Three curved tiles

solar roof tiles


Performances



curved solar roof tiles

Physical Parameters
Product modelHW-MQSB-V2、HW-MQSG-V1Colorblack and grey
Length721(±1)mmJunction box39*46*16.6mm IP67
Width500(±1)mmCable type2.5mm Solar energy cable
450(+10/-0)mm
Height8(±1)mmCable commecterMC4
Weight6.5(±0.5)kg

Electrical property parameters
Core typeCIGSOpen -circuit coltage10.6V
Power30WCurrent under PMPP3.5A
Short -circuit current4AVoltage under PMPP8.6V
Performance rate


Loading  rate2400 PaFireproong rateA
Water  proofing  rateIP67Operating temperature>40°C to +85°C
Anti-hail rate4(ANSI FM 4473)Operating humidity0*80%



Details

solar tiles

solar roof tiles    curved solar roof tiles


Advantages

The curved shape of the solar tiles is aesthetically pleasing and their style perfectly matches the classical architectural appearance.


It uses solar cells made of copper indium gallium selenide (CIGS), which is also known as a flexible module, so it's easy to bend and can fit more closely to roofs with multiple shapes. However, the power generation efficiency is not high, its maximum output is only 91w per square metre.

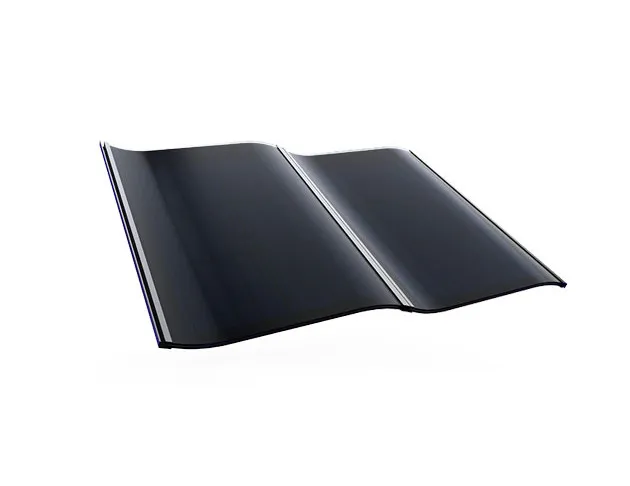

Type 2—— T MAX O


solar tiles


Performances

solar roof tiles

PHYSICAL PARAMETERS
Product modelJS30DG-6b1/2
ColorBlack
Dimensions580*400mm
Weight5kg
Glass (material/thickness)Tempered glass/3.2mm+Backplane
Solar Cell Type182*91mm(2*5)
Junction box≥IP67
Cable type300mm / 4mm²
Plug connectorMC4
Life span>30years
ELECTRICAL PARAMETERS(STC)
Solar cellsMonocrystalline
Power output( Pmax )30W
Module efficiency(%)15.00%
Voltage at Pmax(Vmpp5.7V
Current at Pmax(Impp)5.14A
Open-circuit current(Voc)6.74V
Short-circuit current(Isc)6.53A


Details

curved solar roof tiles


Advantages


The tile uses monocrystalline silicon solar modules and has been made to bend the solar cells, making it the world's first bent monocrystalline silicon tile.


Monocrystalline silicon has a much higher power generation efficiency than copper indium gallium selenide (CIGS), so its maximum power output can reach an astonishing 140w per square metre. This is a great innovation for sgbsolar and makes sgbsolar the world's leading supplier of solar roof tiles.




sgbsolar as a professional solar tiles manufacturer, he will be used to face any challenge. If you are interested in us, please do not hesitate to contact us.
