New upgraded topcon solar cells high efficiency 95w solar panel tiles
Recently, sgbsolar has made a new upgrade for solar panel tilesT MAX O. The output power of the upgraded black module can reach 95w per piece, and the output power per square meter can be as high as 190w.
- gainsolar
- hangzhou
- Information

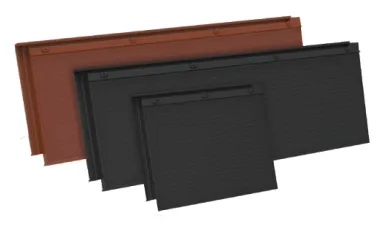

This is sgbsolar's latest upgraded solar panel tiles T MAX O, the biggest upgrade point is the output power, you can see that the black solar panel tiles T MAX O has been upgraded from 90w to 95w, the other parts have not been changed in any way, sgbsolar just replaced the internal solar cells to achieve this purpose. sgbsolar simply replaced the internal solar cells to achieve this.

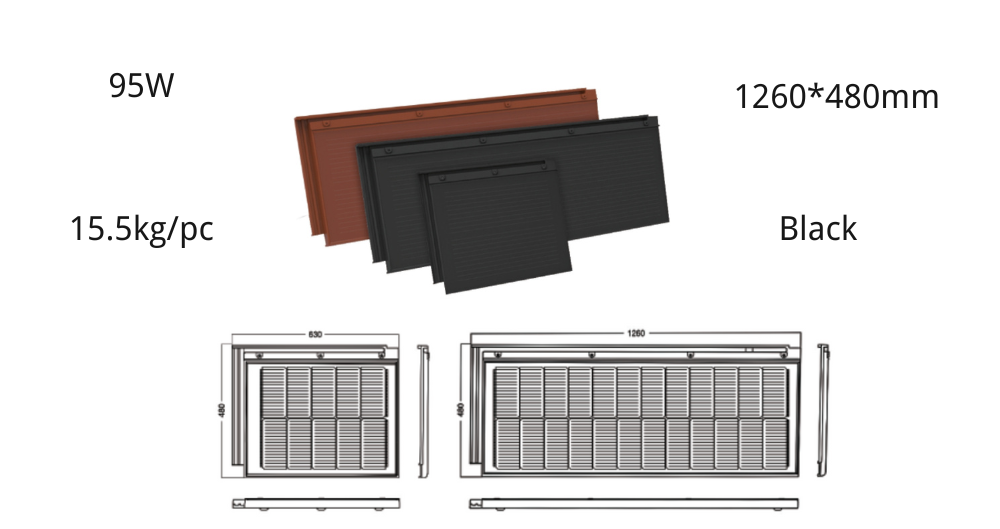

Data sheet
| T MAX O PHYSICAL PARAMETERS | |
| Product model | JS95CB-24P |
| Dimensions | 1260*480mm |
| Weight | 15.5kg |
| Glass (material/thickness) | Tempered glass/3.2mm+3.2mm |
| Cell | 182*91mm（2*12） |
| Junction box | ≥IP67 |
| Cable type | 900mm / 4mm² |
| Plug connector | MC4 |
| Life span | >30years |
| ELECTRICAL PARAMETERS(STC) | |
| Solar cells | Monocrystalline |
| Power output（Pmax ） | 95W |
| Module efficiency（%） | 20.00% |
| Voltage at Pmax（V mpp） | 14.7V |
| Current at Pmax（I mpp） | 6.46A |
| Open-circuit current（Voc） | 17.5V |
| Short-circuit current（Isc） | 6.79A |
Advantages
Due to continuous feedback from users in the market, can the maximum output power of solar panel tiles T MAX O be increased? Of course, sgbsolar has always been willing to explore and challenge more difficult issues.
Based on the market's voice, in order to meet the user's needs, sgbsolar has made an attempt to replace the power generation component - solar cell, choosing the topcon solar cell with higher conversion efficiency, and discarding the originally used perc cell with low conversion rate.
Not only that, the 20% high conversion efficiency of TOPCon cell sheet makes it more suitable for distributed PV power generation system, PV building integration and other small-scale PV projects, which coincides with our product design concept. sgbsolar has been continuously exploring the PV building integration roof power generation.
As a result, sgbsolar has increased the power generation from the original 90w per piece to 95w per piece while keeping the size and weight of the product unchanged. yes, sgbsolar has done it!
Although the difference of 5w is not big, let's do a calculation, there is a roof installed with solar panel tiles T MAX O, the area is 100 square meters, after replacing it with the latest 95w solar panel tiles T MAX O
5*2*100=1000w=1kw
1kw*4*0.8*365=1168kwh
From the calculation result, it is concluded that the installed capacity of the roof can be increased by 1kw, which can generate an additional 3.2kwh of electricity per day, and the total amount of electricity generated in a year can be 1,168kwh, so the change brought by such a small upgrade is huge.
Contact Us
As a professional solar panel tiles manufacturer, sgbsolar has been dedicated to the research, development, production and sales of solar panel tiles. If you are interested in sgbsolar's solar panel tiles, want to use solar energy on your roof but can't tolerate the ugly appearance of photovoltaic panels, or you are looking for higher If you are interested in sgbsolar's solar panel tiles, want to use solar energy on your roof but can't stand the ugly appearance of PV panels, or you are looking for higher output solar panel tiles, then please don't hesitate to contact sgbsolar for solar roofing solutions!
