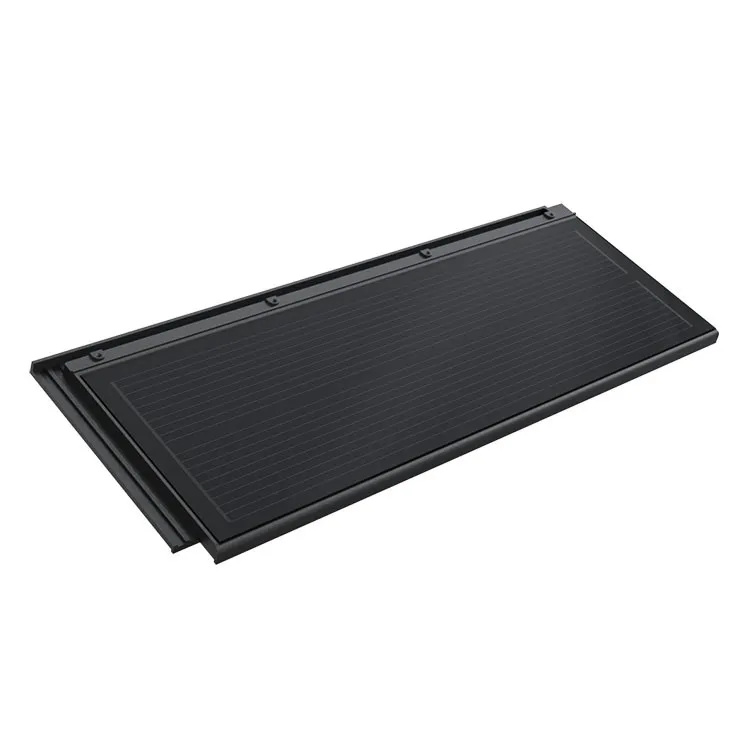

90W Photovoltaic slates shingles O max series Black solar roof tile

T MAX-O is composed of monocrystalline silicon cells, and contains 2*12 modules inside, with a power level of 90w. Frameless design, easy to clean and no snow accumulation.

  • Information
  • Download

T MAX-O is composed of monocrystalline silicon cells, and contains 2*12 modules inside, with a power level of 90w. Frameless design, easy to clean and no snow accumulation.
High-efficiency crystalline silicon, 180w per square meter, double-layer 3.2mm tempered glass design, can withstand trampling during installation, and resist rain and snow,
The design combines traditional tiles and modern solar cell technology, which can provide clean energy for your home as a roofing building material.

photovoltaic roof slates

T MAX O PHYSICAL PARAMETERS

Product model

JS90DG-13e 1/2

Dimensions

1260*480mm

Weight

15.5kg

Glass (material/thickness)

Tempered glass/3.2mm+3.2mm

Cell

182*91mm(2*12)

Junction box

≥IP67

Cable type

900mm / 4mm²

Plug connector

MC4

Life span

>30years

ELECTRICAL PARAMETERS(STC)

Solar cells

Monocrystalline

Power output(Pmax )

90W

Module efficiency(%)

18.90%

Voltage at Pmax(V mpp)

13.7V

Current at Pmax(I mpp)

6.57A

Open-circuit current(Voc)

16.3V

Short-circuit current(Isc)

6.89A


Build in one

Ventilation and heat dissipation are easy to repair

Structural drainage
The surface flows and is easy to clean

Integral compounding
Glass has a long life without punching

New materials
Sound insulation and heat preservation, fire resistance and aging resistance, low linear expansion coefficient

The warranty claim is for the product for 10 years and the power warranty for 25 years.

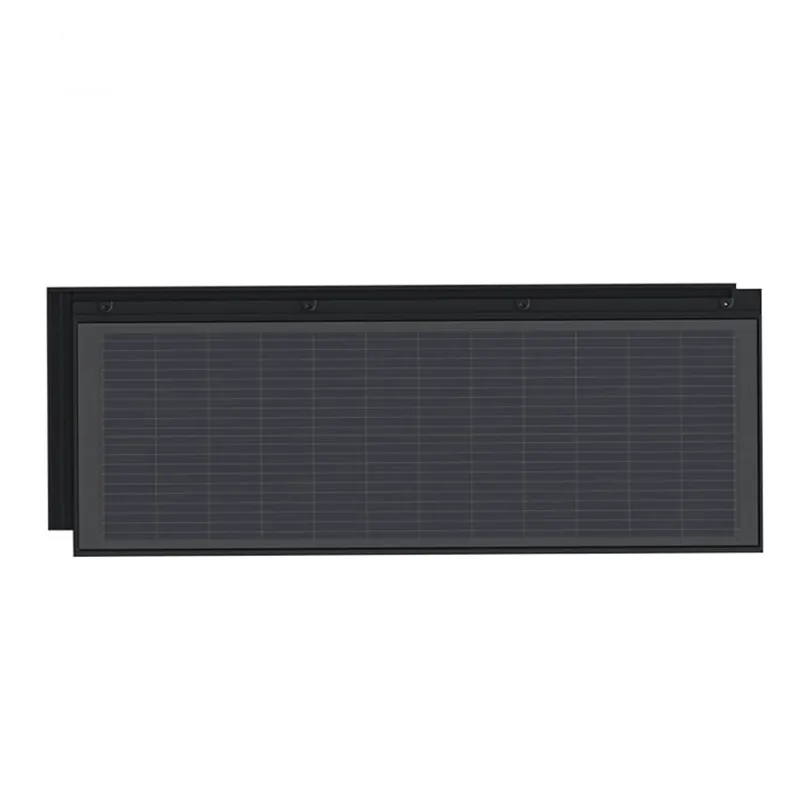

T MAX-A is composed of monocrystalline silicon cells, containing 2*12 modules and a power level of 90W. High-efficiency integrated roof design, more installation capacity, more power generation
Solar roof tile as a new building material to provide you with green energy one-stop solution, home roof tile and solar energy integrated design.

pv roof slates

T MAX A PHYSICAL PARAMETERS

Product model

JS90DG-12e 1/2

Dimensions

1200*430mm

Weight

9.5kg

Glass (material/thickness)

Tempered glass/3.2mm+3.2mm

Cell

182*91mm(2*12)

Junction box

≥IP67

Cable type

500mm / 4mm²

Plug connector

MC4

Life span

>30years

ELECTRICAL PARAMETERS(STC)

Solar cells

Monocrystalline

Power output(Pmax )

90W

Module efficiency(%)

17.40%

Voltage at Pmax(V mpp)

13.7V

Current at Pmax(I mpp)

6.57A

Open-circuit current(Voc)

16.3V

Short-circuit current(Isc)

6.89A

Modular Installation

Heat insulation

High efficiency



Eye protection and anti-glare

Fully absorb visible light



Top-end material

Strong resistance to pressure and wear



Sealing design waterproof

Leak-proof, and anti-circuit



The warranty claim is for the product for 10 years and the power warranty for 25 years.

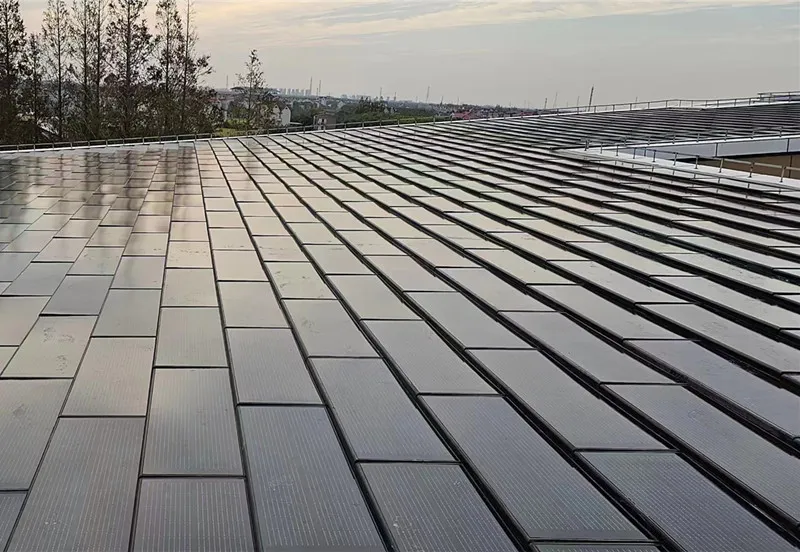

CASE
